PINK GmbH Thermosysteme
 |
Founded by Friedrich Pink – is located in Wertheim Main, Germany and has more than 160 employees. The product range includes systems for vacuum-supported soldering, sintering systems, low-pressure plasma systems for surface treatment as well as systems for drying and processing technology. |
Over the years, the family business PINK has grown steadily and successfully due to continuous product improvements and consequent customer orientation.
PINK operates internationally with a network of sectoral agencies in all major markets and is a worldwide supplier of customized plants and systems.
Gentle Drying Under Vacuum
Among the thermal processes, vacuum drying has proven particularly effective in many sectors. The purpose of this process is to dry gently a high-grade product containing water or solvents without modifying the product characteristics.
During drying under vacuum, the total pressure in the drying oven is lowered so that the water or solvent vaporizes even at low temperatures.
The drying process is optimized by selectively controlling the heat supply and pressure.
A vacuum drying system basically consists of a drying oven with a heating system and a vacuum pump assembly, designed for a specific drying process with the associated control.
Vacuum Drying Systems/Isolators
The right systems for drying and process technology: for laboratory (VSD-e) and standard drying processes (VT), for a GMP/FDA-compliant process (VSD), for the safe drying of HAPI products (VSDI) and for pre-filtering and drying liquid, toxic products (VSDIN).
VSD Vacuum Drying Ovens
Perfect Clean and Contamination-Free Drying Processes
|
GMP/FDA-Compliant
The manufacture of sensitive and, under certain circumstances, highly potent, hazardous products calls for plants and systems capable of drying such products gently under extremely clean and contamination-free conditions. The VSD vacuum drying ovens create precisely these conditions.
The VSD is ideal for GMP/FDA-compliant processes. These vacuum drying ovens are an indispensable feature of pilot plants, kilo labs and production installations.
|
 |
 |
Intelligent Design for High Customer Benefit
Together with its elaborate production process, the design principle of the VSD system is responsible for the vacuum drying ovens' outstanding features: no corners, no sharp edges – an interior as from a single mold. The heated shelves, ceiling and floor are double-walled and merge seamlessly into the chamber walls. Due to the system's efficient heat circulation, the walls are also uniformly heated and cannot serve as condensation surfaces therefore.
On the front, the vacuum drying ovens are fitted with a continuous mounting frame for wall installation, the frame being tightly welded to the vacuum chamber. With its pharmaceutical design the door is eccentrically hinged, so that the door seal can be perfectly fitted to avoid abrasion and bruising.
Click here to Request a Quote.
 | Click below to download the product brochures in PDF Format. |
PINK GmbH Thermosysteme Systems Drying and Process Technology Brochure

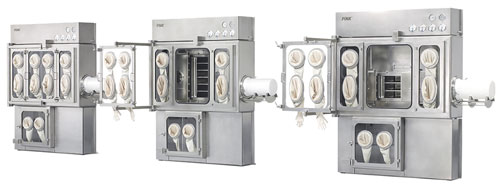

Vacuum Drying Ovens with Isolator VSDI
Containment Systems for Contamination-Free and Safe Drying of HAPI Products
The drying of highly active and toxic substances in test centres, laboratories or production calls for protective measures for both the operator and the product. PINK has therefore combined its VSD drying oven with an isolator to ensure the safe handling of HAPIs. The VSDI is ideal for drying these substances.
Click here to Request a Quote.
| Click below to download the product brochures in PDF Format. |

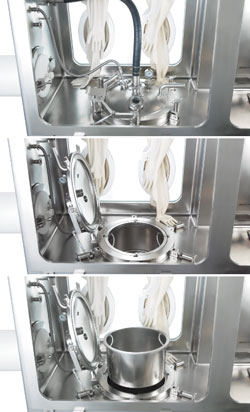

VSD with Isolator and Pressure Nutsch VSDIN
System for the Prefiltration and Drying of Liquid, Toxic Products
 |
 |
|
|
As another example of an intelligent combination, PINK combines VSD vacuum drying ovens, isolators and pressure nutsches in integrated systems.
This combination enables the prefiltration of liquid products before the drying process, thus optimizing the workflow.
For applications, in which the filling and filtration of the product is to take place outside the isolator, PINK has designed a mobile pressure nutsch for contamination-free docking. |
Click here to Request a Quote.
| Click below to download the product brochures in PDF Format. |
PINK GmbH Thermosysteme Systems Drying and Process Technology Brochure
VSD-e Vacuum Drying Ovens
Compact and Flexible for Laboratory Applications
|
PINK’s VSD-e is a compact, high-grade vacuum drying oven designed to provide users in industry, science and research with a high performance, safe and clean system for the laboratory.
Thus, PINK is making the advantages of the VSD vacuum drying oven with its GMP/FDA-compliant design available for smaller laboratory applications as well. |
|
 |
The VSD-e has electric contact heating with an integrated control. Its operation only requires a plug socket and a vacuum device.
Click here to Request a Quote.
| Click below to download the product brochures in PDF Format. |
PINK GmbH Thermosysteme Systems Drying and Process Technology Brochure
VT Vacuum Drying Ovens
For Standard Drying Processes
|
VT Vacuum Drying Ovens have been in successful use in the field for many years. The heating medium is supplied and returned vacuum-tightly through the chamber's rear wall.
VT Vacuum Drying Ovens feature a pass-through version with a lock function between gray and clean rooms. VT Vacuum Drying Oven also contain heated shelves, prepared for the integration into a clean room wall
Click here to Request a Quote.
|
|
 |
PINK GmbH Thermosysteme Systems Drying and Process Technology Brochure
UT Circulating Air Ovens
Drying, Heating, Tempering and Sterilizing
|
Certain products are not suitable for drying under vacuum or do not require this technology. For these PINK offers a comprehensive range of circulating air ovens in a huge variety of versions. These ovens can be used for drying under atmospheric conditions and for heating, tempering and sterilizing.
For drying products containing solvents under normal pressure, PINK again has a highly reliable solution. The UT-ex circulating air oven with external solvent recovery offers such features as a safe condensation and collection of potentially explosive solvents for proper disposal at any time. |
|
 |
Click here to Request a Quote.
| Click below to download the product brochures in PDF Format. |
PINK GmbH Thermosysteme Systems Drying and Process Technology Brochure
VUT Vacuum Circulating Air Ovens
Reliable Drying with a Combination of Vacuum and Circulating Air
|
To vacuum-dry a product that is embedded in a product carrier or, due to its inherent structure, exhibits poor heat transfer by conduction, it makes good sense to combine two different forms of drying: vacuum and circulating air.
For such applications, PINK has its VUT Vacuum Circulating Air Oven. The product is heated to a defined temperature by circulating air, then a vacuum is generated. This process runs alternately, the number of cycles depends on the product's drying behavior. |
|
 |
